Toyota Rear Diff Switch - Small
Toyota Rear Diff Switch - Small
SKU:DIFFSW-SMALL
Regular price
$27.50 USD
Regular price
Sale price
$27.50 USD
Unit price
/
per
If you are adding an electronic locker to your rear differential, you will need a way to actuate it. These switches fit the factory switch plates to provide a clean factory look to complete the installation. The backlighting for this switch is amber, to match the factory lighting.

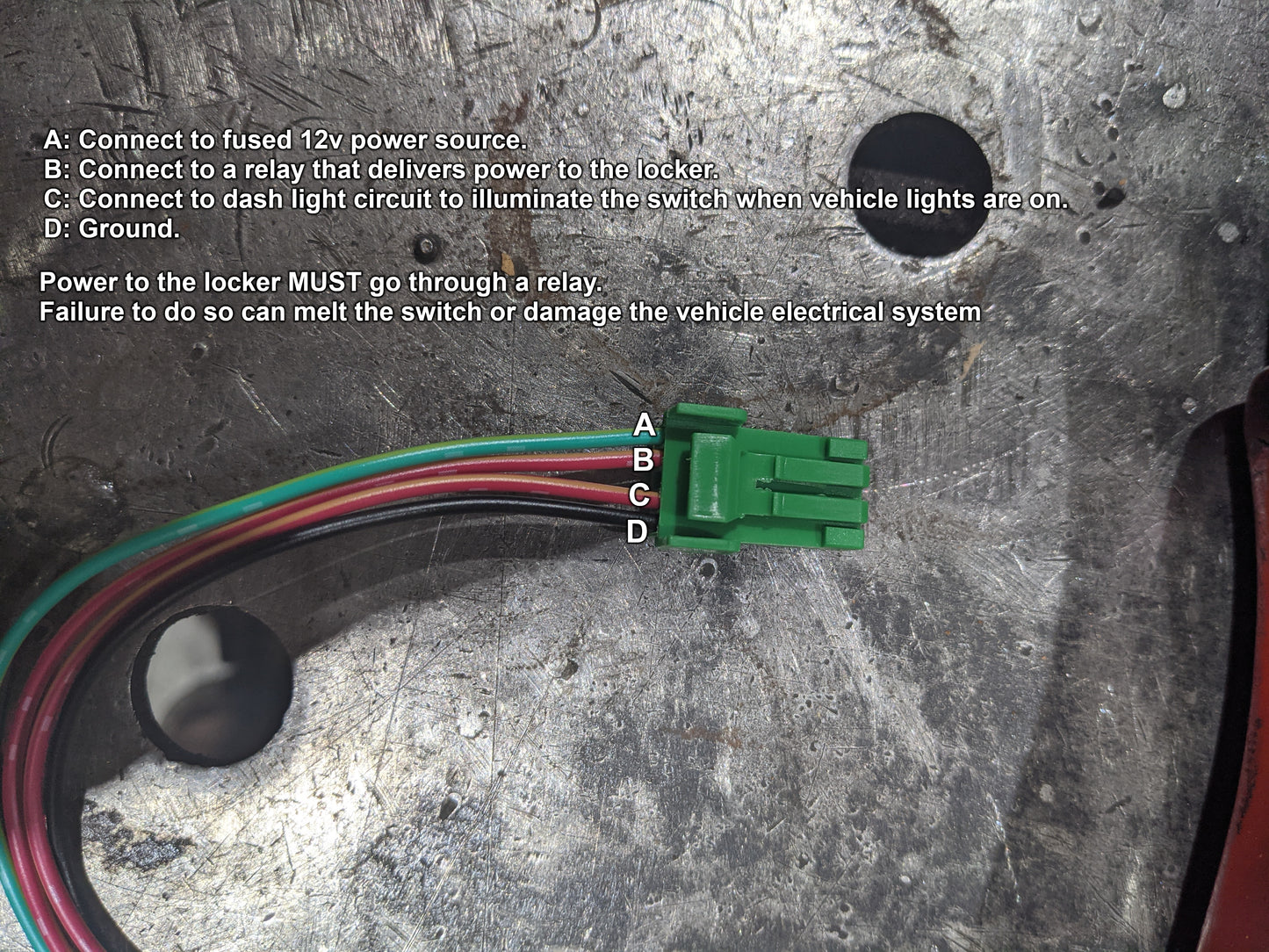

The pinout is as follows, looking at the wiring from above:
The pinout is as follows, looking at the wiring from above:
- Green: Power from a fused 12v source.
- Red 1: Connect to a relayed circuit for the power line going to the locking differential
- Red 2: Connect to the dash light circuit, which allows the light in the switch to turn on when the dash lights are active.
- Black: Ground
Please Note: A relay must be used to provide power for the locking differential. Failure to do so can melt the switch or cause electrical damage to your vehicle.
Please see the product image for a visual guide to the pin-out connections.
Vehicle Compatibility
Vehicle Compatibility
- 4Runner 5G
- 4Runner 4G
- FJ Cruiser
- Sequoia 2G
- Tacoma 3G
